Anion binding and ion-pairing of organoplatinum(II) complexes with countercations increases solid-state phosphorescence 75 times

π-Electronic molecules are luminescent materials with applications in photonics. However, they lose their luminosity in the solid state due to self-association. To address this issue, researchers from Ritsumeikan University, Japan introduced chloride ions and cations to dipyrrolyldiketone Pt^II complexes, creating a charge-by-charge arrangement. This innovative approach prevents self-association of π-electronic molecules, maintaining luminescent properties in the solid state. The study opens avenues for new emissive materials with potential applications in organic electronics and flexible displays.

Photoluminescent molecules, capable of absorbing and re-emitting light, play an important role in the development of technologies such as light-emitting diodes, sensors, and displays. Among them, ordered arrangements of π-electronic molecules such as crystals of organoplatinum(II) complexes, where a platinum(II) ion is coordinated by organic ligands in a square-planar arrangement, stand out for their applications in energy-efficient flexible displays. However, their luminescence in the solid state is short-lived due to the interaction between excitons (bound electron-hole pairs) of neighboring molecules. To address this issue, bulky foreign molecules are introduced into the molecular structure to prevent or minimize the electronic interactions between molecules.

Using this strategy, a research team led by Professor Hiromitsu Maeda from Ritsumeikan University, Japan, recently enhanced the solid-state phosphorescence in multiple organoplatinum(II) complexes, increasing the phosphorescence by upto 75 times. “Spatially and electronically isolated ordered arrangement of emissive π-electronic molecules is a principal point for the preparation of emissive solid-state materials. This concept can be used in materials for organic electronics, particularly organic light-emitting diodes for flexible displays,” explains Prof. Maeda.

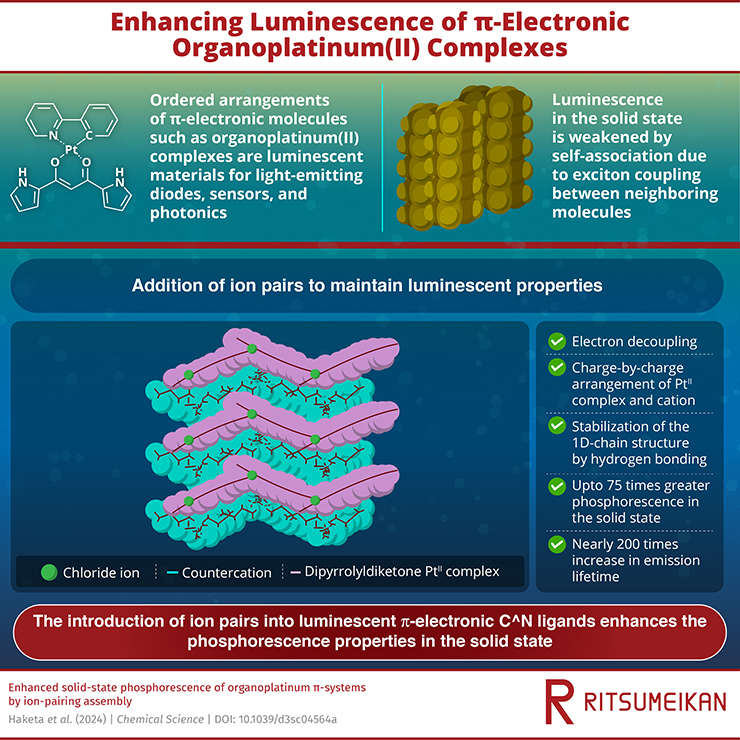

In their study published in Chemical Science on December 5, 2023, the research team synthesized dipyrrolyldiketone Pt^II complexes consisting of four different C^N ligands. These molecules display strong phosphorescence in solution but show extremely weak phosphorescence in the solid state due to self-association. To enhance their luminosity in the solid state, the team introduced ion pairs consisting of a chloride anion and tetraalkylammonium countercations: TPA⁺ (tetrapropylammonium), TBA⁺ (tetrabutylammonium), and TPeA⁺ (tetrapentylammonium). This resulted in ion-pairing assemblies consisting of chloride ion-binding Pt^II complexes and countercations. The chloride ions bind to the Pt^II complex via hydrogen bonds, while the cations form layers between the π-electronic molecules. X-ray analysis confirmed the complex's rigid structure, where Pt^II complexes are separated by cations in charge-by-charge arrangements.

By isolating the π-electronic molecules from each other, the researchers enhanced the luminescent properties of the organoplatinum(II) complexes in the solid state. Compared to the original anion-free states where the complex is not bonded to the chloride ion, the relative intensity of phosphorescence in Cl⁻-binding Pt^II complexes with cations showed improvements ranging from 1% to 7.5%, a 75-fold increase over the original molecule. The luminescence also lasts significantly longer, with certain ion-pairing assemblies achieving an emission lifetime nearly 200 times longer than the monomeric Pt^II complex. Theoretical studies using DFT calculations revealed that the charge-by-charge packing structure prevents the delocalization of the electron wavefunction over Pt^II complexes.

“To the best of our knowledge, such a room-temperature phosphorescence enhancement by anion binding and ion-pairing assembly has not been demonstrated thus far,” remarks Prof. Maeda.

Such a strategy can be used to design emissive materials and improve the phosphorescence of solid-state materials for novel applications. “The chemistry of ion-pairing assembly of charged π-electronic molecules is a new topic in a research area of supramolecular chemistry. Understanding the interactions between charged species and the formation of assembled structures through research will affect in a further design and fabrication of functional ion-pairing assemblies such as efficient electric conductive materials, ferroelectric materials, and chiral transfer in ion pair and the ion-pairing assemblies exhibiting fascinating optical properties,” concludes Prof. Maeda.

Title of original paper: Enhanced solid-state phosphorescence of organoplatinum π-systems by ion-pairing assembly
Journal: Chemical Science
DOI: 10.1039/d3sc04564a

About Professor Hiromitsu Maeda from Ritsumeikan University, Japan

Hiromitsu Maeda is a professor at the Department of Applied Chemistry, College of Life Sciences, Ritsumeikan University. He completed his PhD from Kyoto University in 2004. Professor Maeda’s research interests include topics like physical organic chemistry, supramolecular chemistry, and materials science on π-electronic systems. Prof. Maeda has received several prizes, including the ChemComm Emerging Investigator Lectureship (2012) and Fellow of the RSC (2015), and has over 200 publications.

Funding information

This work was supported by JSPS KAKENHI Grant Numbers JP18H01968 and JP22H02067 for Scientific Research (B), JP19K05444 and JP22K05253 for Scientific Research (C), JP20J22745 for JSPS Fellows and JP20H05863 for Transformative Research Areas (A) “Condensed Conjugation” and the Ritsumeikan Global Innovation Research Organization (R-GIRO) project (2017–22 and 2022–27)
